External API Configuration Guide

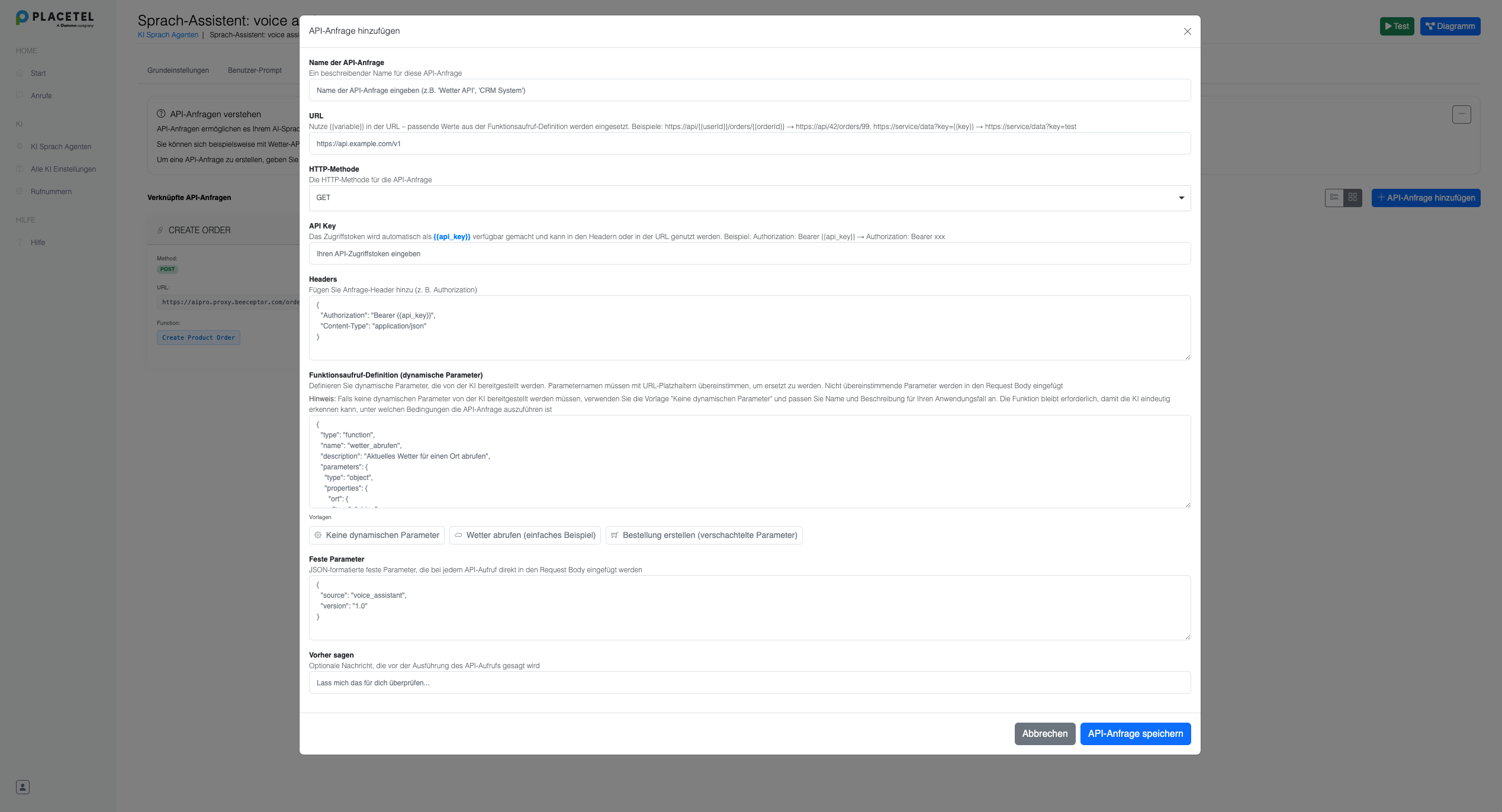

You can create API request definitions in the API-Anfragen tab of the voice wizard. Click on “API-Anfrage hinzufügen” and you’ll see the following input form with the fields explained below. API Request Configuration Form

​
Form Fields Explained

​
Name der API-Anfrage

A descriptive name for your API request (e.g., “Create Product Order”)

​
URL

The API endpoint URL. You can use placeholders like {{userId}} that will be replaced with values from your dynamic function parameters.
  • Example: https://api.shop.com/orders/{{userId}}

​
HTTP-Methode

Choose the HTTP method for your request (GET, POST, PUT, DELETE, etc.)

​
API Key

Your authentication token. This will automatically replace any {{api_key}} placeholders in your URL or headers.

​
Headers

HTTP headers for your request in JSON format:
{
  "Authorization": "Bearer {{api_key}}",
  "Content-Type": "application/json"
}
  • {{api_key}} will be replaced with your API Key

​
Function Definition (Dynamic Parameters)

Define the parameters that users can pass when calling your function:
{
  "type": "function",
  "name": "place_order",
  "description": "Place a product order for a customer",
  "parameters": {
    "type": "object",
    "properties": {
      "userId": {
        "type": "string",
        "description": "Customer user ID"
      },
      "orderDetails": {
        "type": "object",
        "properties": {
          "product": {"type": "string"},
          "quantity": {"type": "number"}
        }
      }
    }
  }
}
These parameters will:
  • Replace matching placeholders in URL and headers
  • Any dynamic parameters not matched with any placeholders will be included in the request body
  • Works with nested objects - e.g., `orderDetails“ object will be preserved in the body

​
Fixed Parameters

Static values that are always included in every request:
{
  "storeId": "STORE_123",
  "paymentMethod": "credit_card",
  "currency": "USD"
}
These will:
  • Always be included in the request body as-is
  • They do NOT replace placeholders in headers or URL

​
Vorher sagen

An optional message that the AI assistant will tell the user before executing the API request. For example: “I’m creating your order now…” or “One moment, I’m retrieving the product information…”

​
Example: GET Request Without Dynamic Parameters

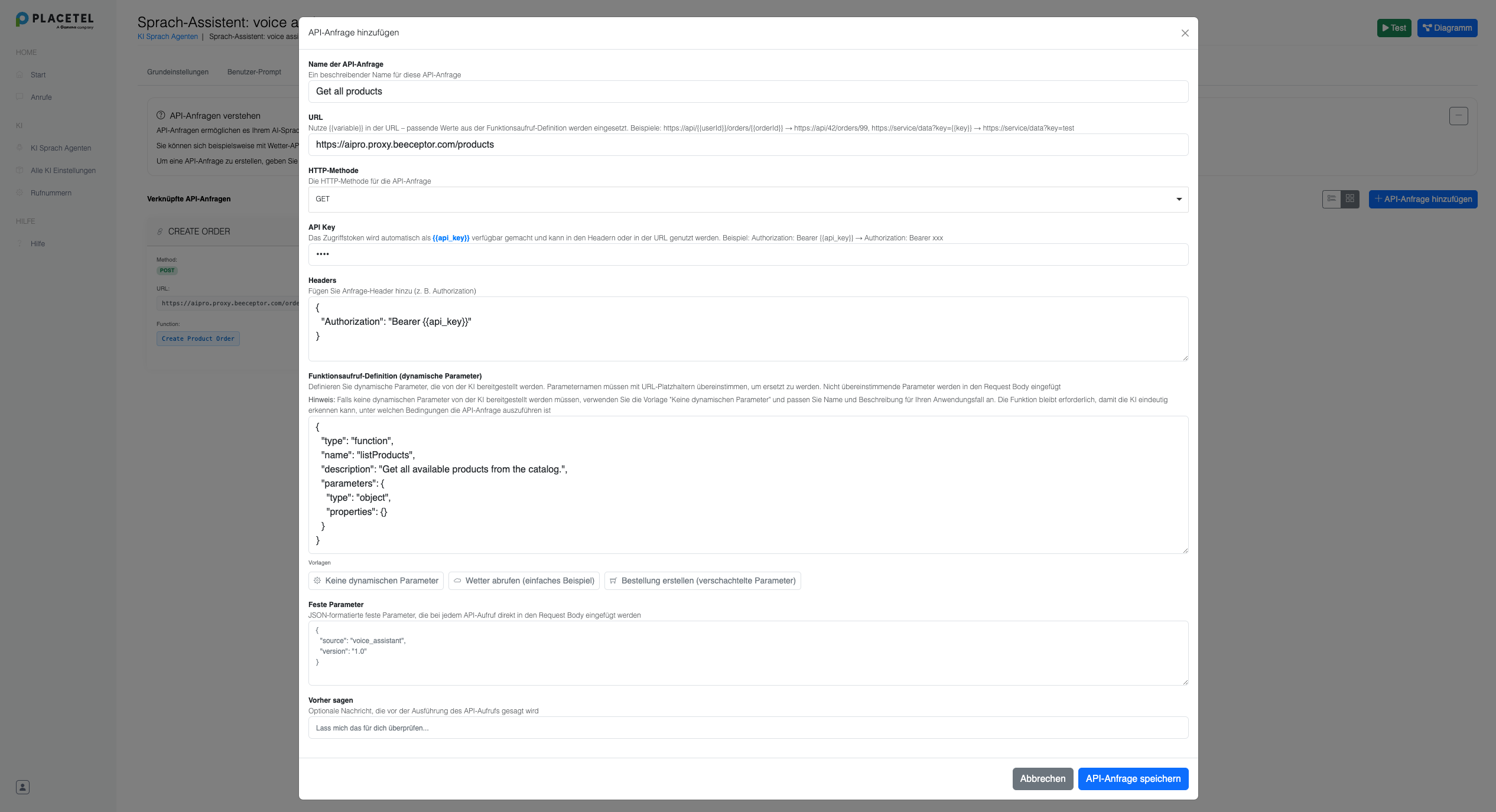

Some API calls don’t need parameters from the AI - for example “Get all products”. In this case, a function definition is still required so that the AI triggers the API request. API Request Configuration for GET without parameters

​
Configuration for “Get all products”:

  • Name der API-Anfrage: “Get all products”
  • URL: https://aipro.proxy.beeceptor.com/products
  • HTTP-Methode: GET
  • API Key: (empty or your API key)
  • Headers: Standard GET headers

​
Function Definition Without Parameters:

Click on “Keine dynamischen Parameter” to get a template:
{
  "type": "function",
  "name": "listProducts",
  "description": "Get all available products from the catalog",
  "parameters": {
    "type": "object",
    "properties": {}
  }
}
Important:
  • A meaningful function name and description are critical because the AI must understand when to call the function
  • Add explicit instructions in the User Prompt if the AI has trouble
  • The empty properties: {} are required for a valid function definition

​
Resulting HTTP Request:

Based on the configuration above, the following HTTP request will be created:
GET https://aipro.proxy.beeceptor.com/products
Content-Type: application/json
Explanation:
  • URL: Direct URL without placeholder replacements
  • Headers: GET headers with Bearer API token
  • Parameters: No dynamic parameters required

​
How the Final Request is Built

  1. URL: Placeholders replaced with dynamic function parameters
  2. Headers: {{api_key}} → API Key, other placeholders → dynamic parameter values
  3. Body: Combination of Fixed Parameters + dynamic parameters not matched with any placeholders

​
Example Final HTTP Request

Based on the parameters above, the following HTTP request will be built:
POST https://api.shop.com/orders/user123
Authorization: Bearer YOUR_API_KEY_HERE
Content-Type: application/json

{
  "storeId": "STORE_123",
  "paymentMethod": "credit_card",
  "currency": "USD",
  "orderDetails": {
    "product": "Wireless Headphones",
    "quantity": 2
  }
}
Explanation:
  • URL: {{userId}} was replaced with “user123”
  • Headers: {{api_key}} was replaced with your actual API key
  • Body: Contains both fixed parameters (storeId, paymentMethod, currency) and dynamic parameters (orderDetails)
